SpiceBook

A notebook interface for SPICE circuit simulation.

Write the narrative. Run the simulation. See the waveform. All in one document.

---

What is this?

SpiceBook is a notebook for circuit engineers. Markdown cells for explanation, SPICE cells for simulation, waveform plots for results -- interleaved in a single document you can re-run, share, and version control.

Think "Jupyter for circuits" except it actually understands SPICE. The editor highlights your .tran and .ac commands. The waveform viewer knows about dB and degrees. Engineering notation on the axes reads 1.59 kHz, not 1591.549.

Nothing else does this. PySpice needs you to write Python. CircuitLab is closed-source and schematic-only. Multisim Live is shutting down. The browser-based ngspice wrappers give you one netlist and one plot -- no narrative, no interleaving, no notebook.

SpiceBook lets you write a document that says: "here's why this filter works, here's the AC analysis proving it, here's the step response confirming the time constant" -- and every claim is backed by a live, re-runnable simulation.

Features

• Markdown cells with rendered preview -- headings, bold, lists, inline math notation

• SPICE cells with CodeMirror 6 and custom syntax highlighting:

  • Dot commands (.tran, .ac, .dc, .model, .param, .subckt, ...)
  • Component prefixes (R, C, L, V, I, M, Q, D, X)
  • Engineering notation (1k, 10u, 3.3meg, 100p)
  • Comments (* and ;), brace expressions ({10k*(1-x)})

• Waveform viewer built on uPlot (~50KB, fast):

  • Multi-trace overlay with color-coded legend
  • Stacked Bode plots (magnitude dB + phase degrees) for AC analysis
  • Time-domain plots for transient analysis
  • Log-scale frequency axis, engineering-notation labels
  • Click-drag zoom, scroll to pan

• ngspice backend -- subprocess execution with binary .raw file parsing

• Notebook operations -- create, open, edit, save, delete, reorder cells, run individually or all at once

• Color-coded resistor schematics -- zigzag symbols colored with standard 4-band resistor color codes. A 10kΩ resistor renders Brown-Black-Orange-Gold directly on the schematic symbol, bridging the gap between physical components and abstract schematics. Falls back to standard monochrome for parametric or out-of-range values.

• Keyboard shortcuts -- Ctrl+S save, Shift+Enter run cell

• Clean URLs -- /notebook/rc-lowpass-filter via Astro dynamic routes

• 15 example notebooks included:

  Fundamentals:

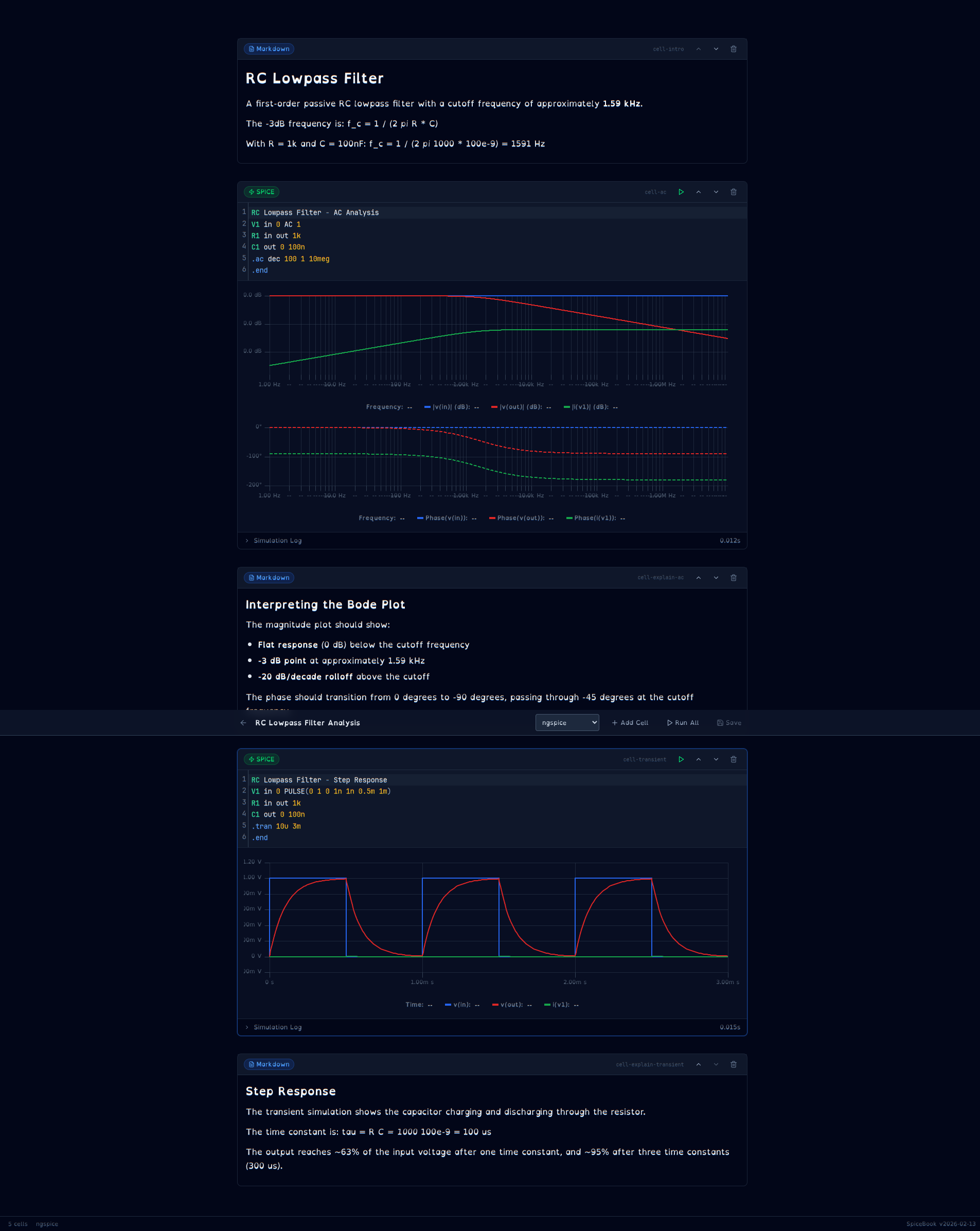

  • RC Lowpass Filter Analysis (AC + transient)
  • Voltage Divider (DC operating point + sweep)
  • Common Emitter Amplifier (AC + transient with BJT model)
  • RC Step Response, RLC Bandpass Filter, Diode Rectifier, LED I-V Curve, Inverting Op-Amp, CMOS Inverter

  Advanced (multi-cell, real-world circuits):

  • Synchronous Buck Converter -- 12V-to-3.3V switching regulator with startup and steady-state detail
  • Class AB Push-Pull Audio Amplifier -- frequency response, clean output, and overdrive clipping
  • AM Radio Receiver -- envelope detection with carrier and audio waveforms
  • Dickson Charge Pump -- voltage multiplication under light and heavy loads
  • Transmission Line Signal Integrity -- unterminated ringing vs series-terminated clean signals
  • 4th-Order Sallen-Key Butterworth Filter -- active filter vs passive RC comparison
  • Colpitts RF Oscillator -- ~1 MHz oscillation startup and steady-state

Quick Start

Prerequisites

• ngspice -- the simulation engine
  • Arch: sudo pacman -S ngspice
  • Debian/Ubuntu: sudo apt install ngspice
  • macOS: brew install ngspice
• Python 3.12+ with uv
• Node.js 20+

Local Development (no Docker)

# Clone
cd spicebook

# Backend
cd backend
uv sync
uv run uvicorn spicebook.main:app --host 0.0.0.0 --port 8099 --reload

# Frontend (separate terminal)
cd frontend
npm install
npx astro dev --host 0.0.0.0 --port 4322

Open http://localhost:4322

Docker (Development)

make dev

Frontend at http://localhost:4321, backend at http://localhost:8099, API docs at http://localhost:8099/docs.

Docker (Production)

make prod

Production mode runs behind Caddy with TLS via caddy-docker-proxy. Set SPICEBOOK_DOMAIN in .env.

Makefile Targets

Target	What it does
make dev	Build and start dev containers with hot-reload
make prod	Build and start production containers
make down	Stop all containers
make logs	Tail container logs
make clean	Remove containers, volumes, and build artifacts
make backend-shell	Shell into the backend container
make help	List all targets

Project Structure

spicebook/
├── frontend/                # Astro 5 + React 19
│   ├── src/
│   │   ├── pages/           # Astro routes (index, /notebook/[id])
│   │   ├── components/
│   │   │   ├── notebook/    # Editor, cells, output viewers, toolbar
│   │   │   └── ui/          # Button, Badge, Dropdown (shadcn/ui)
│   │   ├── lib/
│   │   │   ├── spice-language.ts   # CodeMirror SPICE mode
│   │   │   ├── waveform-utils.ts   # Engineering notation formatter
│   │   │   ├── notebook-store.ts   # Zustand state
│   │   │   ├── api.ts              # Backend client
│   │   │   └── types.ts            # TypeScript types
│   │   └── styles/globals.css
│   └── astro.config.mjs
├── backend/                 # FastAPI + ngspice
│   ├── src/spicebook/
│   │   ├── main.py          # App factory, health check
│   │   ├── config.py        # Settings from environment
│   │   ├── engine/          # SPICE engine abstraction
│   │   │   ├── base.py      # Abstract base class
│   │   │   ├── ngspice.py   # ngspice subprocess + .raw parser
│   │   │   ├── schematic.py # Netlist → SVG schematic (SchemDraw)
│   │   │   └── resistor_colors.py  # Color-coded zigzag resistors
│   │   ├── models/          # Pydantic schemas
│   │   │   ├── notebook.py  # Notebook, Cell, CellOutput
│   │   │   └── simulation.py
│   │   ├── routers/         # API endpoints
│   │   │   ├── notebooks.py # CRUD
│   │   │   ├── simulation.py # Run cells
│   │   │   └── waveforms.py # Waveform data
│   │   └── storage/
│   │       └── filesystem.py # .spicebook file I/O
│   ├── tests/
│   └── pyproject.toml
├── notebooks/
│   ├── examples/            # Shipped example notebooks
│   └── user/                # User-created (gitignored)
├── docker-compose.yml       # Base services
├── docker-compose.dev.yml   # Dev overrides (hot-reload, port mapping)
├── docker-compose.prod.yml  # Prod overrides (Caddy, no ports exposed)
├── Makefile
└── .env

.spicebook File Format

Notebooks are JSON files with a .spicebook extension. Git-friendly, outputs persisted inline.

{
  "spicebook_version": "2026-02-13",
  "metadata": {
    "title": "RC Lowpass Filter Analysis",
    "engine": "ngspice",
    "tags": ["filter", "passive"]
  },
  "cells": [
    {
      "id": "cell-001",
      "type": "markdown",
      "source": "# My Circuit\nExplanation goes here.",
      "outputs": []
    },
    {
      "id": "cell-002",
      "type": "spice",
      "source": "V1 in 0 AC 1\nR1 in out 1k\nC1 out 0 100n\n.ac dec 100 1 10meg\n.end",
      "outputs": [
        {
          "output_type": "simulation_result",
          "data": { "success": true, "waveform": { "..." : "..." } },
          "timestamp": "2026-02-13T12:00:00Z"
        }
      ]
    }
  ]
}

Tech Stack

Layer	Technology
Frontend framework	Astro 5 (SSR, Node adapter)
Interactive islands	React 19
Code editor	CodeMirror 6 (custom SPICE language mode)
Waveform charts	uPlot
State management	Zustand
Styling	Tailwind CSS 4
UI components	shadcn/ui
Icons	Lucide
Backend	FastAPI
SPICE engine	ngspice (subprocess)
Data validation	Pydantic
Containerization	Docker Compose
Reverse proxy	Caddy (via caddy-docker-proxy)

API

The backend exposes a REST API. When running in dev mode, interactive docs are at http://localhost:8099/docs.

Key endpoints:

Method	Path	Description
GET	/api/notebooks	List all notebooks
GET	/api/notebooks/{id}	Get a notebook
POST	/api/notebooks	Create a notebook
PUT	/api/notebooks/{id}	Update a notebook
DELETE	/api/notebooks/{id}	Delete a notebook
POST	/api/notebooks/{id}/cells/{cell_id}/run	Run a SPICE cell
POST	/api/simulate	Run a standalone simulation
GET	/health	Health check

Configuration

All configuration is via environment variables (.env file). See .env for the full list.

Variable	Default	Description
ENVIRONMENT	dev	dev or prod
BACKEND_PORT	8099	Backend port (dev only)
FRONTEND_PORT	4321	Frontend port (dev only)
NGSPICE_PATH	/usr/bin/ngspice	Path to ngspice binary
NOTEBOOK_DIR	/app/notebooks	Notebook storage path
SPICEBOOK_DOMAIN	--	Domain for production (Caddy TLS)
VITE_HMR_HOST	--	Set when behind reverse proxy

Roadmap

Phase 2 -- Core Features

• Python cells with sandboxed execution and cross-cell data access
• LTspice engine integration (via mcltspice library)
• Measurement cursors in waveform viewer
• SVG/CSV export for waveforms
• Signal analysis: FFT, THD, RMS, bandwidth
• KaTeX math rendering in markdown cells

Phase 3 -- Advanced

• Schematic cells (SchemDraw backend rendering)
• Auto-schematic generation from netlist
• WebSocket progress for long simulations
• LTspice .asc file import

Phase 4 -- Polish

• Interactive schematic editor (tscircuit integration)
• Parameter sweeps with overlay plots
• Monte Carlo analysis visualization
• Template gallery

Contributing

1. Fork the repository
2. Create a feature branch: git checkout -b my-feature
3. Make changes and add tests
4. Run the linter: cd backend && uv run ruff check .
5. Run tests: cd backend && uv run pytest
6. Submit a pull request

Versioning

SpiceBook uses date-based versioning (YYYY.MM.DD). The current version is 2026.02.13.

---

Built by Ryan Malloy
