Ryan Malloy 5870e2f7ee panel: inline AND-IF condition editor for compact-form programs ...

Replaces the read-only "conditions present but not editable" banner
with a real editor for the cond / cond2 u16 fields on TIMED / EVENT /
YEARLY programs.

Compact-form conditions split into five families per
clsText.GetConditionalText (clsText.cs:2224-2274):

  none     — cond = 0 (no inline condition)
  misc     — family 0x00, low nibble = enuMiscConditional
             (NONE / NEVER / LIGHT / DARK / PHONE_* / AC_POWER_* /
             BATTERY_* / ENERGY_COST_*)
  zone     — family 0x04, low byte = zone, bit 0x0200 = NOT_READY
  unit     — family 0x08, low 9 bits = unit, bit 0x0200 = ON
  time     — family 0x0C, low byte = time-clock #, bit 0x0200 = enabled
  sec      — family >= 0x10, bits 8-11 = area, bits 12-14 = security mode

types.ts gains decodeCondition / encodeCondition + the
MISC_CONDITIONALS / SECURITY_MODE_NAMES enums. Round-trip is exact:
decode(encode(c)) === c for every supported family.

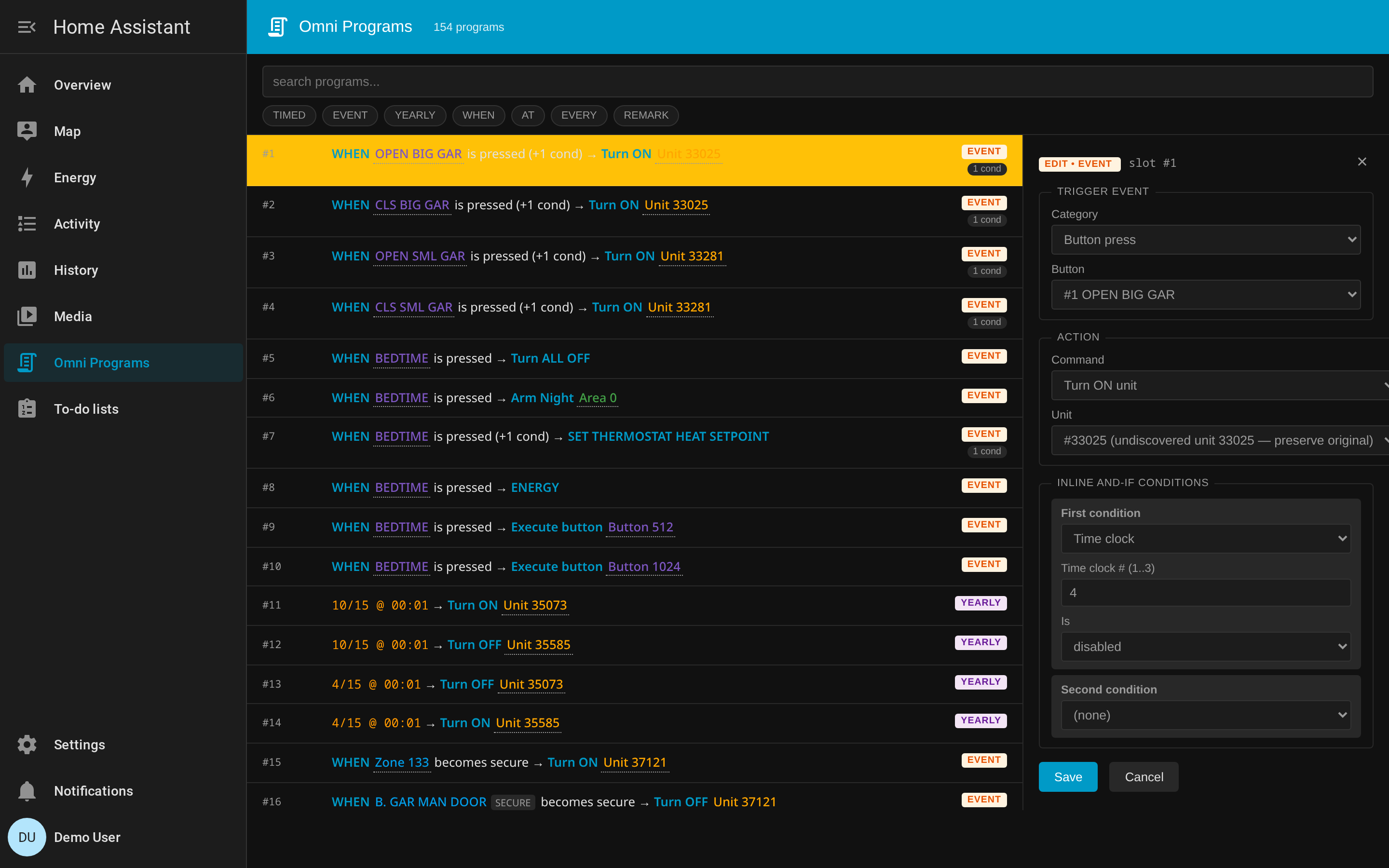

UI: two condition slots per editor (matching the two u16 fields on
the wire). Each slot has a family-picker dropdown that swaps the
sub-fields (zone picker + secure/not-ready, unit picker + on/off,
area picker + security mode, time-clock # + enabled/disabled, misc
condition picker, or "none"). Picking a family seeds sensible defaults
(NEVER for misc, first zone secure, first unit ON, area 1 disarmed,
time clock 1 enabled).

Object pickers reuse the same _bucketWithPreserve helper introduced
for the action editor, so out-of-range zone/unit/area refs in inline
conditions keep their original value with a "preserve" label.

Live smoke test against the real panel: slot #1's actual condition
"AND IF Time clock 4 is disabled" now decodes into the editor as
Family=Time clock / # = 4 / Is = disabled — exactly the on-disk state.

Frontend bundle: 63 KB minified (up from 56 KB with the new editor
section + cond helpers).

2026-05-17 01:43:32 -06:00
