Replaces the read-only "structured comparison" banner with a real
editor. Structured AND records encode ``Arg1 OP Arg2`` where Arg1 is
a typed reference (Zone / Unit / Thermostat / Area / TimeDate) plus a
per-type field selector, and Arg2 is either another typed reference
or a literal constant.
I1 — TS types + decoders:
Wire layout (programs.py decoders, clsProgram.cs):
cond high byte = and_op (CondOP: 1=EQ, 2=NE, 3=LT,
4=GT, 5=ODD, 6=EVEN, 7=MULT,
8=IN, 9=NOT_IN)
cond low byte = and_arg1_argtype (CondArgType)
cond2 (whole) = and_arg1_ix (object idx; 0 for TimeDate)
cmd = and_arg1_field (per-type field selector)
par = and_arg2_argtype (Constant most common)
pr2 = and_arg2_ix (constant value or 2nd obj idx)
month = and_arg2_field
day,days = and_compconst (BE u16; usually 0)
decodeStructuredAnd / encodeStructuredAnd handle both directions;
round-trip exact.
Per-Arg1Type field menus in FIELDS_BY_TYPE — exact 1:1 with the
Python enuZoneField / enuUnitField / enuThermostatField /
enuTimeDateField enums in omni_pca.programs and the field handling
in StateEvaluator. Areas only expose "Security mode" (single useful
field). TimeDate exposes Year / Month / Day / DoW / Time / Hour /
Minute (skips the rarely-used Date / DST / SunriseSunset fields).
I2 — editor UI:
isEditableStructuredAnd guard: only opens the editor for records
matching the editor's scope (Arg1 in supported types, Arg2=Constant,
compConst=0). Out-of-scope structured records render with a
"read-only" tag — preserved on save, still removable.
Structured rows render with a "structured" tag and an orange-tinted
background to distinguish them from Traditional rows. Layout:
Arg1 type ▸ object picker ▸ Field ▸ Operator ▸ Compare against
Unary operators (ODD / EVEN) hide the Arg2 input. Changing Arg1 type
resets the Arg1 index + field to defaults so the form stays self-
consistent (no stale picker values from a previous type).
Arg2 is locked to Constant in this pass. Editing record-vs-record
comparisons (e.g. "Thermostat 1 temp > Thermostat 2 temp") is a
future cut — current real-world programs use the Constant form
exclusively per my homeowner-panel sample.
_pickBucket gains the missing "thermostat" branch (was missed in
earlier passes; only mattered now that thermostat is an Arg1Type).

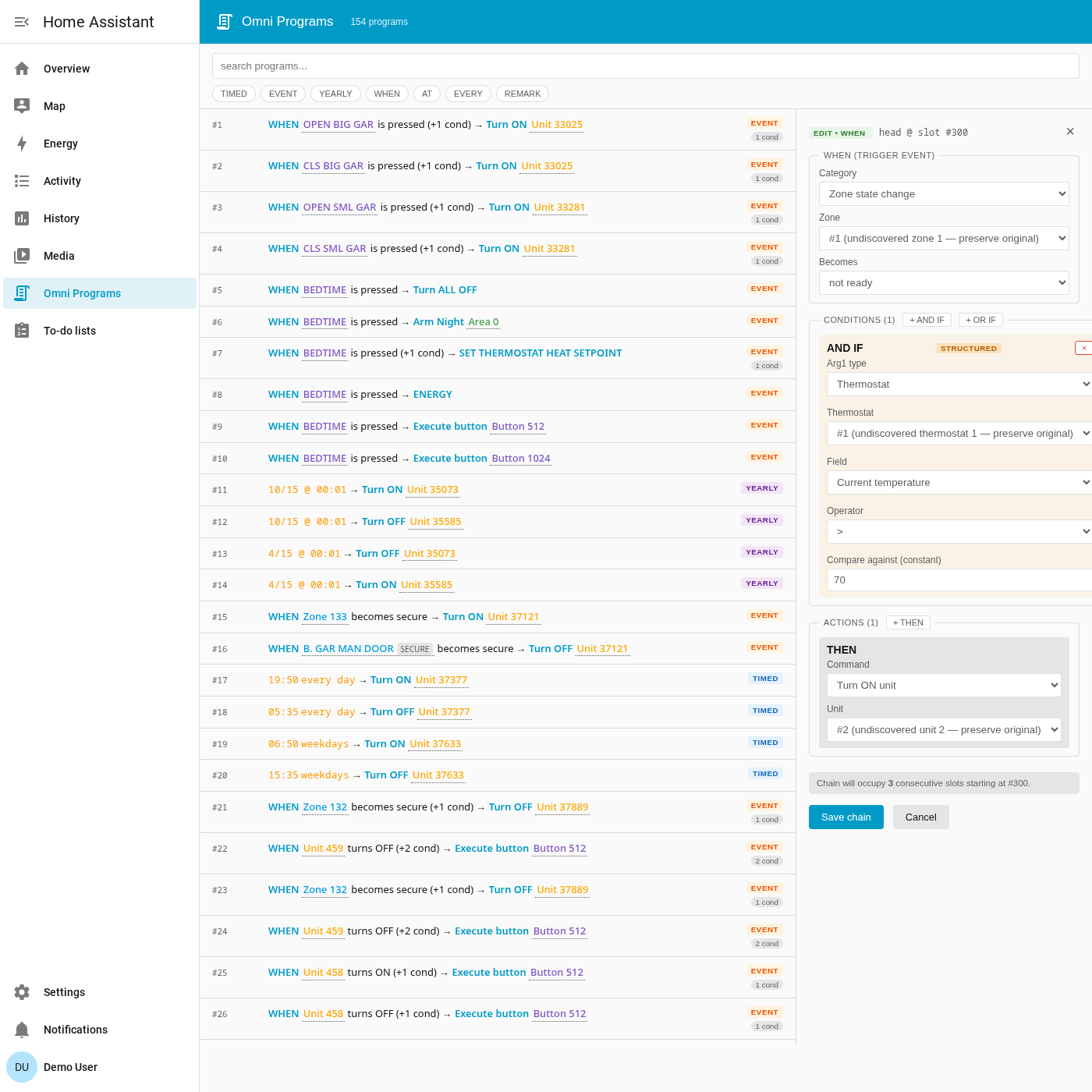

Live screenshot 12-structured-and.png shows an injected chain with
both a Traditional AND (CTRL UNIT 1 ON) and a Structured AND
(Thermostat(1).Temperature > 70) — both editable end-to-end.
Frontend bundle: 88 KB minified (up from 82 KB).
Full suite: 653 passed, 1 skipped (no test changes).
