WireViz is a simple yet flexible, YAML-based markup language for documenting cables, wiring harnesses and connector pinouts with beautiful graphical output (SVG, PNG, ...) thanks to GraphViz.

Features

WireViz input files are fully text based
- No special editor required
- Human readable
- Easy version control
- YAML syntax
Understands and uses color abbreviations as per IEC 60757 (black=BK, red=RD, ...)
- Optionally outputs colors as abbreviation (e.g. 'YE'), full name (e.g. 'yellow') or hex value (e.g. '#ffff00'), with choice of UPPER or lower case
Auto-generates standard wire color schemes and allows custom ones if needed
- DIN 47100 (WT/BN/GN/YE/GY/PK/BU/RD/BK/VT/...)
- IEC 62 (BN/RD/OR/YE/GN/BU/VT/GY/WT/BK/...)
Understands wire gauge in mm² or AWG
- Optionally auto-calculates and displays AWG equivalent when specifying mm²
Allows more than one connector per side, as well as loopbacks
Allows for easy-autorouting for 1-to-1 wiring
Generates BOM (Bill of Materials)

Note: WireViz is not designed to represent the complete wiring of a system. Its main aim is to document the construction of individual wires and harnesses.

Examples

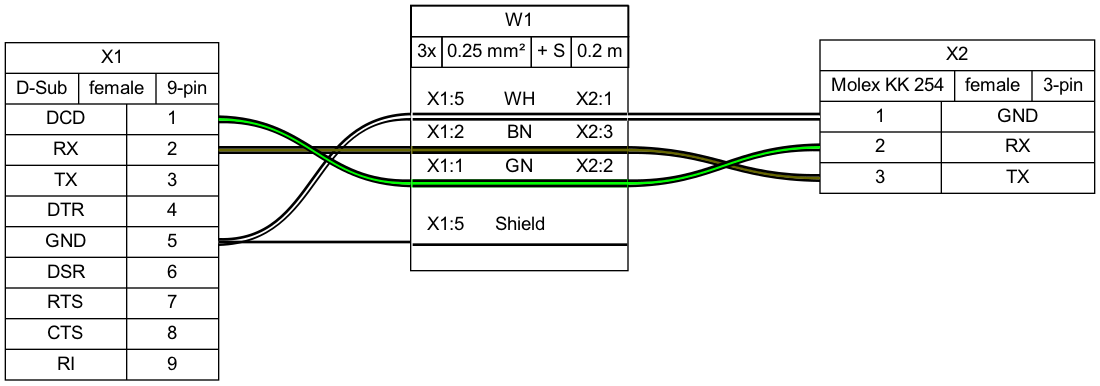

Demo 01

WireViz input file:

connectors:
  X1:
    type: D-Sub
    subtype: female
    pinout: [DCD, RX, TX, DTR, GND, DSR, RTS, CTS, RI]
  X2:
    type: Molex KK 254
    subtype: female
    pinout: [GND, RX, TX]

cables:
  W1:
    gauge: 0.25 mm2
    length: 0.2
    color_code: DIN
    wirecount: 3
    shield: true

connections:
  -
    - X1: [5,2,1]
    - W1: [1,2,3]
    - X2: [1,3,2]
  -
    - X1: 5
    - W1: s

Output file:

Bill of Materials (auto-generated)

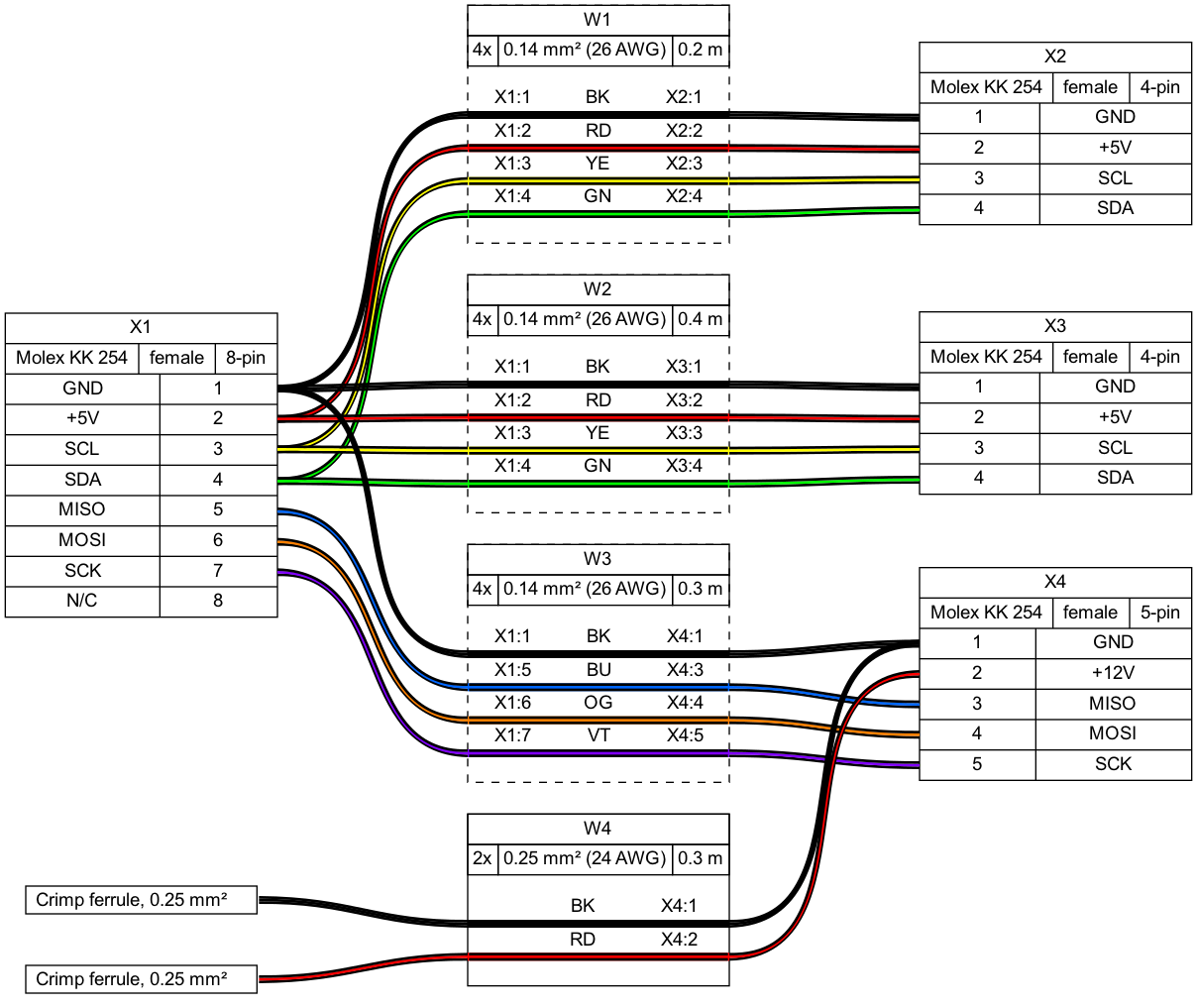

Demo 02

Source - Bill of Materials

Tutorial and example gallery

See the tutorial page for sample code, as well as the example gallery to see more of what WireViz can do.

Status

This is very much a work in progress.

Requirements

Developed and tested using Python 3.7; might not work with older Python versions.

License

GNU GPLv3
